Smart Phone Display
Smart Phone Display

HKC smart phone display covers 4.7-6.7 inches of products, in the narrow frame, thin, shaped cutting, touch integration and other aspects of the design to present a clearer and more delicate picture and display details, and through continuous technological innovation to provide customers with a comprehensive smart phone display solutions.

TFT-LCD
Feature 1
Differentiated customization standardization

Create products with different shapes to meet more needs of customers

Feature 2
lightening

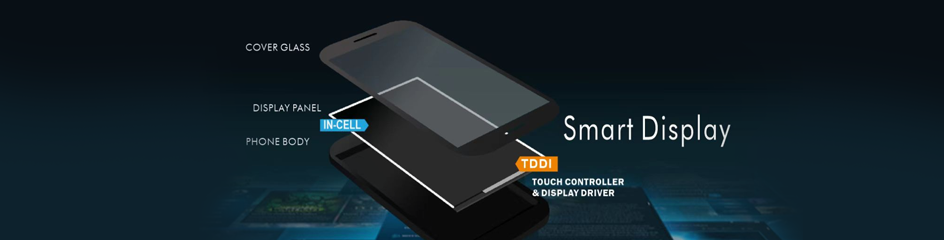

TDDI in cell design, display and touch in one, the body is thinner

Feature 3
Negative liquid crystal + optical orientation

The whole series adopts NLC+PA, which has the advantages of high penetration, high contrast, and power saving

Feature 4
High screen ratio

Constantly reduce the product border, committed to creating a perfect full screen

Feature 5
120Hz high brush

Break through technical restrictions, achieve 120Hz high brush, ensure that the display screen is more stable at the same time, and ensure that the operation of ultra-low temperature can still maintain 120Hz refresh rate, ensure that winter outdoor can also maintain smooth picture

The smart phone displays the product parameter table
Size Touch Resolution Border(L/R/U/D) Active Area(mm) Outline(mm) Frame rate NTSC(%) Contrast Ratio Response Time Mass Production
4.7" Crew cut plug-in 750*1334 1.0/1.0/1.0/4.99012 58.5(H)103.81188(V) 60.5(H)*109.802(V) 60Hz 68(typ),65(min) 1500:1 30(typ),35(max) MP
5.5"Crew cut plug-in 720*1560 1.01.0/0.95/4.85 68.04(H)120.96(V) 70.04(H)126.76(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
5.78 "bangs plug-in 720*1440 1.1904/1.1904/1.2/3.606 67.392(H)*134.784(V) 63.9(H)137.5(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
5.93 "flat head plug-in 720*1560 1.0/1.0/1.0/4.8 67.392(H)*134.784(V) 69.392(H)*140.584(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
6.0 "water droplets plug-in 720*1440 1.0/1.0/1.0/4.8 63.9792(H)*138.294(V) 66.36(H)*143.1(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
5.93 "flat head plug-in 720*1520 1.202/1.202/1.2/4.724 67.392(H)134.784(V) 69.392(H)*140.584(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
6.2 "Water droplets plug-in 720*1560 0.9624/0.9624/0.95/4.76 69.392(H)*148.072(V) 70.308(H)*156.24(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
6.23 "flat head plug-in 720*1600 1.008/1.008/0.9/3.2022 67.392(H)*142.272(V) 68.5(H)149.6(V) 60Hz 68(typ),65(min) 1500:1 35(typ),40(max) MP
6.49 "water droplets plug-in 720*1520 1.0/1.0/1.0/4.6 69.9(H)*155.79(V) 67.932(H)*152.0922(V) 60Hz 68(typ),65(min) 1500:1 30(typ),35(max) MP
6.1 "bangs" incell 720*1520 1.008/1.008/0.9/3.2022 66.096(H)*143.676(V) 66.168(H)143.028(V) 90Hz/60Hz 68(typ),65(min) 1500:1 30(typ),35(max) 2022 Q3MP
6.217 "water droplets incell 720*1560 1.0/1.0/1.0/4.6 67.9752(H)*150.08(V) 69.608(H)*148.328(V) 90Hz/60Hz 68(typ),65(min) 1500:1 31(typ),36(max) 2022 Q3MP
6.3 "water droplets incell 720*1560 0.952/0.952/0.97/4.0 64.152(H)*138.9258(V) 68.54(H)150.05(V) 90Hz/60Hz 68(typ),65(min) 1500:1 30(typ),35(max) 2022 Q3MP
6.4 "Left hole incell 720*1560 1/1/0.9/3.953 67.608(H)*142.728(V) 68.96(H)152.0(V) 90Hz/60Hz 68(typ),65(min) 1500:1 30(typ),35(max) 2022 Q3MP
6.55 "Left hole incell 720*1600 1/1/1/4.3 66.636(H)145.0974(V) 70.256(H)*156.98(V) 90Hz/60Hz 68(typ),65(min) 1500:1 30(typ),35(max) 2022 Q3MP
6.517 "water droplets incell 720*1600 1.0/1.0/1.0/4.0 66.96(H)147.147(V) 69.932(H)155.96(V) 90Hz/60Hz 68(typ),65(min) 1500:1 30(typ),35(max) 2022 Q3MP
6.56 "water droplets incell 720*1612 1.0/1.0/1.0/3.4678 68.256(H)*151.68(V) 69.932(H)156.56(V) 120Hz/90Hz/60Hz 72(typ),69(min) 1500:1 25(typ),30(max) 2022 Q3MP
6.745 "water droplets incell 720*1600 0.9/0.9/0.9/3.5 67.932(H)*150.96(V) 72.108(H)160.64(V) 90Hz/60Hz 68(typ),65(min) 1500:1 25(typ),30(max) 2022 Q3MP

* Product in kind shall prevail. Parameters and specifications are subject to change without prior notice
